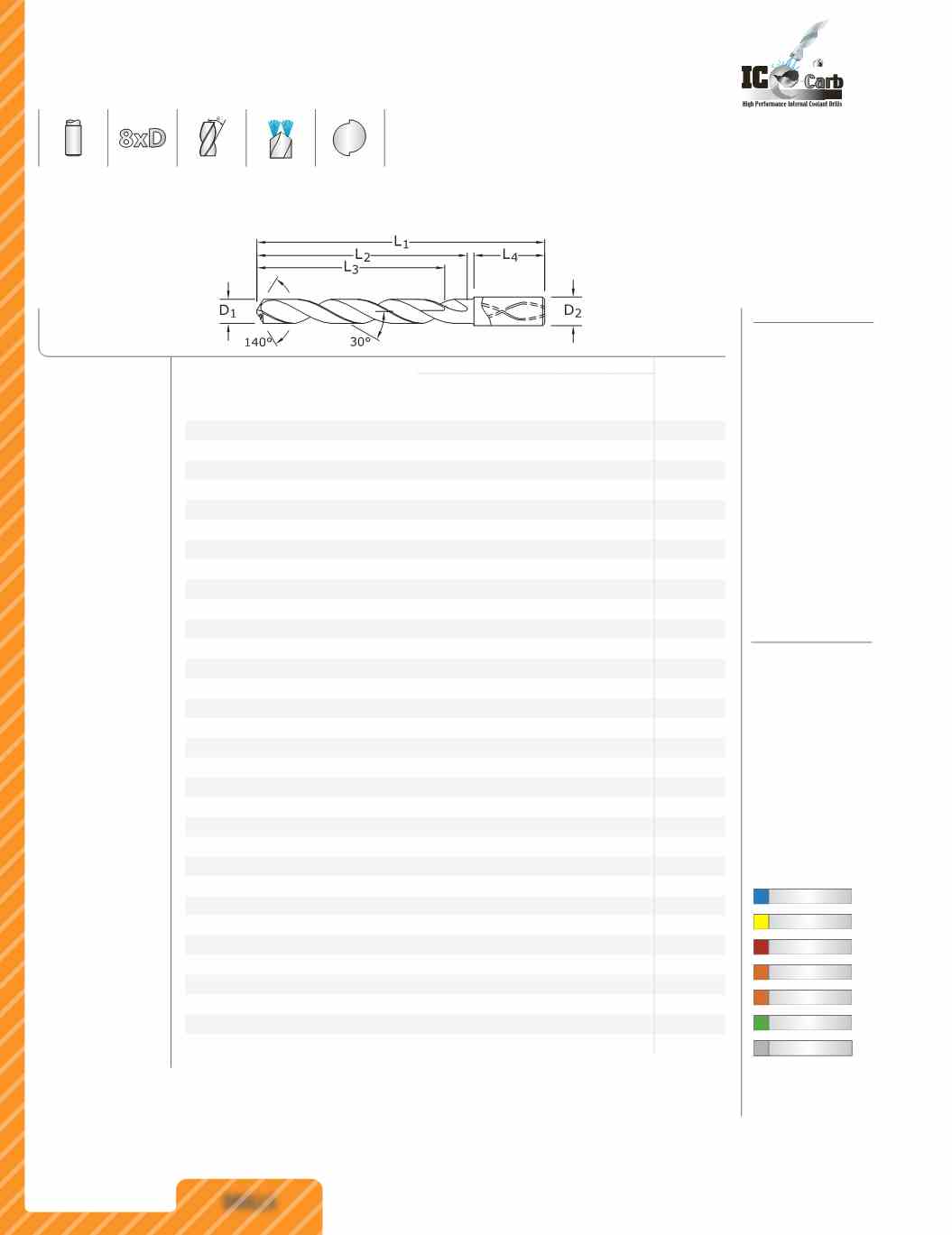

290 / 396
DRILLS
DRILLS
STEELS
STAINLESSSTEELS
CAST IRON
HIGHTEMPALLOYS
TITANIUM
NON-FERROUS
HARDENEDSTEELS
290
www.kyocera-sgstool.com
®
mm
Ti-NAMITE-A
(AlTiN)
EDP NO.
CUTTING
DIAMETER
D
1
DECIMAL
EQUIV.
METRIC
EQUIV.
TAP SIZE
REFERENCE
ONLY
SHANK
DIAMETER
D
2
OVERALL
LENGTH
L
1
FLUTE
LENGTH
L
2
CLEARED
LENGTH
L
3
SHANK
LENGTH
L
4
11/32 0.3438 8.73
3/8-32
10,0 142,0 95,0 80,0 40,0
51819
8,8 mm 0.3465
M10 X 1,25 10,0 142,0 95,0 80,0 40,0
63633
8,9 mm 0.3504
10,0 142,0 95,0 80,0 40,0
63634
9,0 mm 0.3543
M10 X 1
10,0 142,0 95,0 80,0 40,0
63635
9,1 mm 0.3583
10,0 142,0 95,0 80,0 40,0
63636
23/64 0.3594 9.13
10,0 142,0 95,0 80,0 40,0
51820
9,2 mm 0.3622
M10 X 0,75 10,0 142,0 95,0 80,0 40,0
63637
9,3 mm 0.3661
10,0 142,0 95,0 80,0 40,0
63638
U 0.3680 9.35
7/16-14
10,0 142,0 95,0 80,0 40,0
51821
9,4 mm 0.3701
10,0 142,0 95,0 80,0 40,0
63639
9,5 mm 0.3740
M11 / M10 X 0,5 10,0 142,0 95,0 80,0 40,0
63640
3/8 0.3750 9.53
10,0 142,0 95,0 80,0 40,0
51822
9,6 mm 0.3780
10,0 142,0 95,0 80,0 40,0
63641
9,7 mm 0.3819
10,0 142,0 95,0 80,0 40,0
63642
9,8 mm 0.3858
10,0 142,0 95,0 80,0 40,0
63643
9,9 mm 0.3898
10,0 142,0 95,0 80,0 40,0
63644
25/64 0.3906 9.92
7/16-20
10,0 142,0 95,0 80,0 40,0
51823
10,0 mm 0.3937
10,0 142,0 95,0 80,0 40,0
63645
10,1 mm 0.3976
12,0 162,0 114,0 96,0 45,0
63646
10,2 mm 0.4016
M12 X 1,75 12,0 162,0 114,0 96,0 45,0
63647
10,3 mm 0.4055
12,0 162,0 114,0 96,0 45,0
63648
13/32 0.4062 10.32
12,0 162,0 114,0 96,0 45,0
51824
10,4 mm 0.4094
12,0 162,0 114,0 96,0 45,0
63649
10,5 mm 0.4134
M12 X 1,5 12,0 162,0 114,0 96,0 45,0
63650
10,6 mm 0.4173
12,0 162,0 114,0 96,0 45,0
63651
10,7 mm 0.4213
12,0 162,0 114,0 96,0 45,0
63652
27/64 0.4219 10.72
1/2-13
12,0 162,0 114,0 96,0 45,0
51825
10,8 mm 0.4252
M12 X 1,25 12,0 162,0 114,0 96,0 45,0
63653
10,9 mm 0.4291
12,0 162,0 114,0 96,0 45,0
63654
11,0 mm 0.4331
M12 X 1
12,0 162,0 114,0 96,0 45,0
63655
11,1 mm 0.4370
12,0 162,0 114,0 96,0 45,0
63656
7/16 0.4375 11.11 1/4-18NPT 12,0 162,0 114,0 96,0 45,0
51826
continued on next page
• Coolant through design
promotes controlled and
consistent operating
temperatures improving
coolant flow to the
cut while maintaining
strength
• Split point geometry
for improved drill
penetration and accuracy
• Controlled edge honing
for longevity
• Negative corner position
strengthens and protects
• Recommended for
materials ≤ 60 HRc
(≤ 654 Bhn)
140 8xD
FRACTIONAL & METRIC SERIES
2
FRACTIONAL & METRIC
ICe-Carb
®
TOLERANCES
(mm)
≤3
DIAMETER
D
1
=
+0,002/+0,012
D
2
=
h
6
>3–6
DIAMETER
D
1
=
+0,004/+0,016
D
2
=
h
6
>6–10
DIAMETER
D
1
=
+0,006/+0,021
D
2
=
h
6
>10–18
DIAMETER
D
1
=
+0,007/+0,025
D
2
=
h
6
TOLERANCES
(inch)
≤.1181
DIAMETER
D
1
=
+.00008/+.00047
D
2
=
h
6
>.1181–.2362
DIAMETER
D
1
=
+.00016/+.00063
D
2
=
h
6
>.2362–.3937
DIAMETER
D
1
=
+.00024/+.00083
D
2
=
h
6
>.3937–.7087
DIAMETER
D
1
=
+.00028/+.00098
D
2
=
h
6
>.7087–1.1811
DIAMETER
D
1
=
+.00031/+.00114
D
2
=
h
6
For patent
information visit
www.ksptpatents.com
