END MILLS
END MILLS
NON-FERROUS
PLASTICS/COMPOSITES

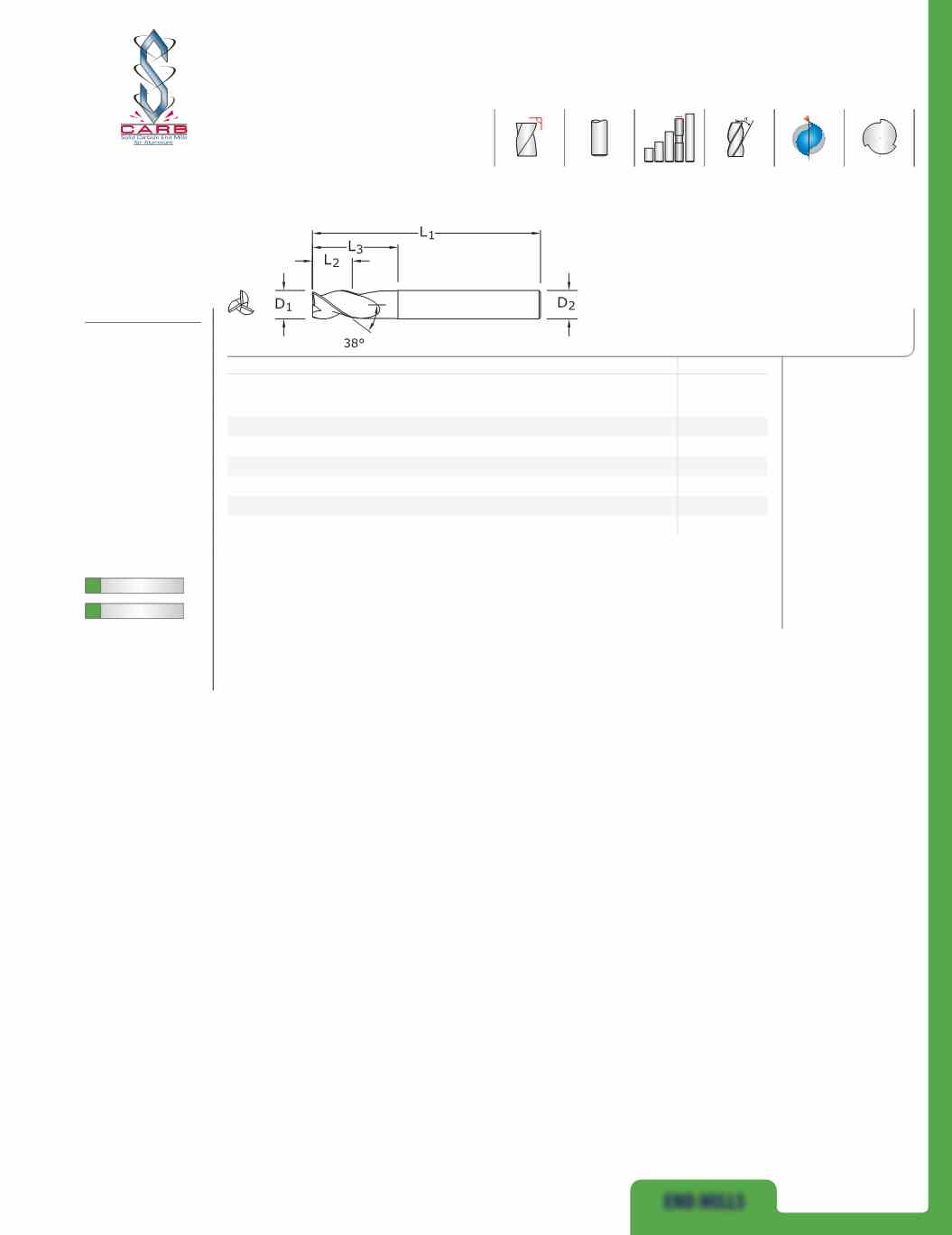

43ML
METRIC SERIES
mm
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
REACH
L
3
Ti-NAMITE-B
(TiB
2
)
6,0
10,0
75,0
6,0
20,0
42706
8,0
12,0
75,0
8,0
25,0
42707
10,0
14,0
100,0
10,0
35,0
42708
12,0
16,0
100,0
12,0
40,0
42709
16,0
20,0
125,0
16,0
50,0
42710
20,0
25,0
150,0
20,0
65,0
42711
METRIC
S-Carb
®
POS
3
• Circular land allows
for increased control
at various speed and
feed rates and reduces
chatter
• Symmetrical end
gashing for excellent
balance at high speeds
and aggressive plunging
capability
• Open fluting for deep
slotting and profiling
• Necked design with
blended diameter
transitions provide
clearance to reach
• Recommended for
materials ≤ 150 Bhn
(≤ 7 HRc)
®
TOLERANCES
(mm)
6
DIAMETER
D
1
=
+0,000/–0,008
D
2
=
h
6
>6–10
DIAMETER
D
1
=
+0,000/–0,009
D
2
=
h
6
>10–18
DIAMETER
D
1
=
+0,000/–0,011
D
2
=
h
6
>18–20
DIAMETER
D
1
=
+0,000/–0,013
D
2
=
h
6
For patent
information visit
www.ksptpatents.com
