METRIC SERIES
mm
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
UNCOATED Ti-NAMITE-C
(TiCN)
3,0
8,0
38,0
3,0
45477
45478
3,5
10,0
57,0
6,0
45479
45480
4,0
11,0
57,0
6,0
45481
45482
4,5
11,0
57,0
6,0
45483
45484
5,0
13,0
57,0
6,0
45485
45486
6,0
13,0
57,0
6,0
45487
45488
8,0
19,0
63,0
8,0
45489
45490
10,0
22,0
72,0
10,0
45491
45492
12,0
26,0
83,0
12,0
45493
45494
14,0
26,0
83,0
14,0
45495
45496
16,0
32,0
92,0
16,0
45497
45498
20,0
38,0
104,0
20,0
45499
45500
METRIC

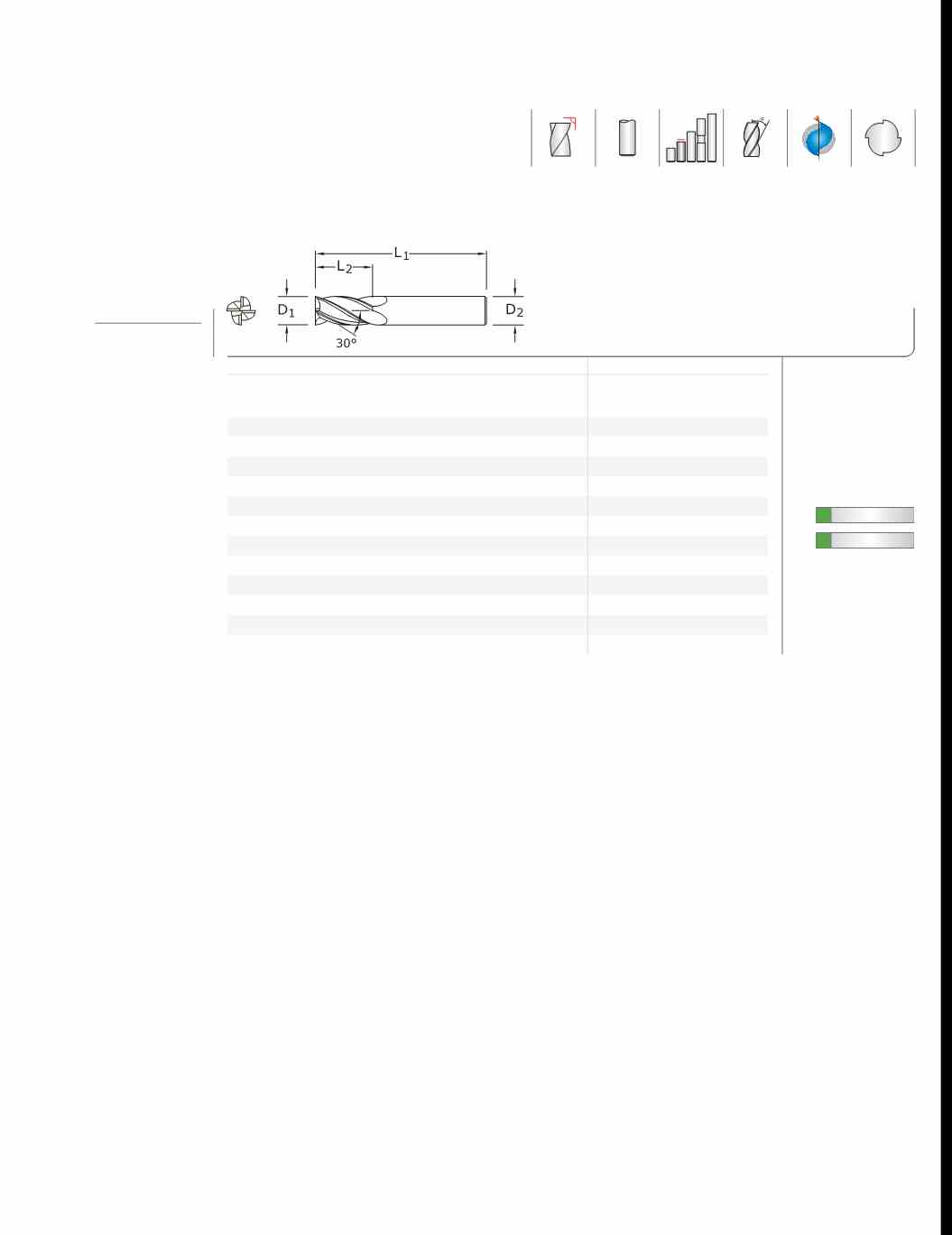

4 Flute High Shear End Mills
TOLERANCES
(mm)
D
1
=
+0,000/–0,050
D
2
=
h
6
POS
4
