CUTTING
DIAMETER
D
1
DECIMAL
EQUIV.
METRIC
EQUIV.
TAP SIZE
REFERENCE
ONLY
SHANK
DIAMETER
D
2
OVERALL
LENGTH
L
1
FLUTE
LENGTH
L
2
CLEARED
LENGTH
L
3
SHANK
LENGTH
L
4
Ti-NAMITE-A
(AlTiN)
EDP NO.
10,0 mm 0.3937
10,0 103,0 61,0
49,0
40,0
64174
X 0.3970 10.08
7/16-24
1/2 4-11/16 2-3/4 2-23/64 1-49/64
52352
10,1 mm 0.3976
12,0 118,0 71,0
56,0
45,0
64175
10,2 mm 0.4016
12,0 118,0 71,0
56,0
45,0
64176
Y
0.4040 10.26
7/16-28
1/2 4-11/16 2-3/4 2-23/64 1-49/64
52353
10,3 mm 0.4055
12,0 118,0 71,0
56,0
45,0
64177
13/32 0.4062 10.32
1/2 4-11/16 2-3/4 2-23/64 1-49/64
51528
10,4 mm 0.4095
12,0 118,0 71,0
56,0
45,0
64178
Z
0.4130 10.49
1/2 4-11/16 2-3/4 2-23/64 1-49/64
52354
10,5 mm 0.4134
M12 X 1,5
12,0 118,0 71,0
56,0
45,0
64179
10,6 mm 0.4173
12,0 118,0 71,0
56,0
45,0
64180
10,7 mm 0.4213
12,0 118,0 71,0
56,0
45,0
64181
27/64 0.4219 10.72
1/2-13
1/2 4-11/16 2-3/4 2-23/64 1-49/64
51529
10,8 mm 0.4252
M12 X 1,25 12,0 118,0 71,0
56,0
45,0
64182
10,9 mm 0.4291
12,0 118,0 71,0
56,0
45,0
64183
11,0 mm 0.4331
12,0 118,0 71,0
56,0
45,0
64184
11,1 mm 0.4370
M12 X 1
12,0 118,0 71,0
56,0
45,0
64185
7/16 0.4375 11.11 1/4-18 NPT 1/2 4-11/16 2-3/4 2-23/64 1-49/64
51530
11,2 mm 0.4409
12,0 118,0 71,0
56,0
45,0
64186
11,25 mm 0.4429
12,0 118,0 71,0
56,0
45,0
64187
11,3 mm 0.4449
12,0 118,0 71,0
56,0
45,0
64188
11,4 mm 0.4488
12,0 118,0 71,0
56,0
45,0
64189
11,5 mm 0.4528
M12 X 0,5
12,0 118,0 71,0
56,0
45,0
64190
29/64 0.4531 11.51
1/2-20
1/2 4-11/16 2-3/4 2-23/64 1-49/64
51531
11,6 mm 0.4567
12,0 118,0 71,0
56,0
45,0
64191
11,7 mm 0.4606
12,0 118,0 71,0
56,0
45,0
64192
11,8 mm 0.4646
12,0 118,0 71,0
56,0
45,0
64193
11,9 mm 0.4685
12,0 118,0 71,0
56,0
45,0
64194
15/32 0.4688 11.91
1/2-28
1/2 4-11/16 2-3/4 2-23/64 1-49/64
51532
12,0 mm 0.4724
M14 X 2
12,0 118,0 71,0
56,0
45,0
64195
31/64 0.4844 12.30
9/16-12
1/2
4-7/8 3-1/32 2-19/32 1-49/64
51533
12,5 mm 0.4921
M14 X 1,5
14,0 124,0 77,0
60,0
45,0
64196
1/2 0.5000 12.70
1/2
4-7/8 3-1/32 2-19/32 1-49/64
51534
12,8 mm 0.5039
M14 X 1,25 14,0 124,0 77,0
60,0
45,0
64197
13,0 mm 0.5118
M14 X 1
14,0 124,0 77,0
60,0
45,0
64198
33/64 0.5156 13.10
9/16-18
5/8
4-7/8 3-1/32 2-19/32 1-49/64
51535
17/32 0.5312 13.49
5/8-11
5/8
4-7/8 3-1/32 2-19/32 1-49/64
51536
13,5 mm 0.5315
14,0 124,0 77,0
60,0
45,0
64199
continued on next page

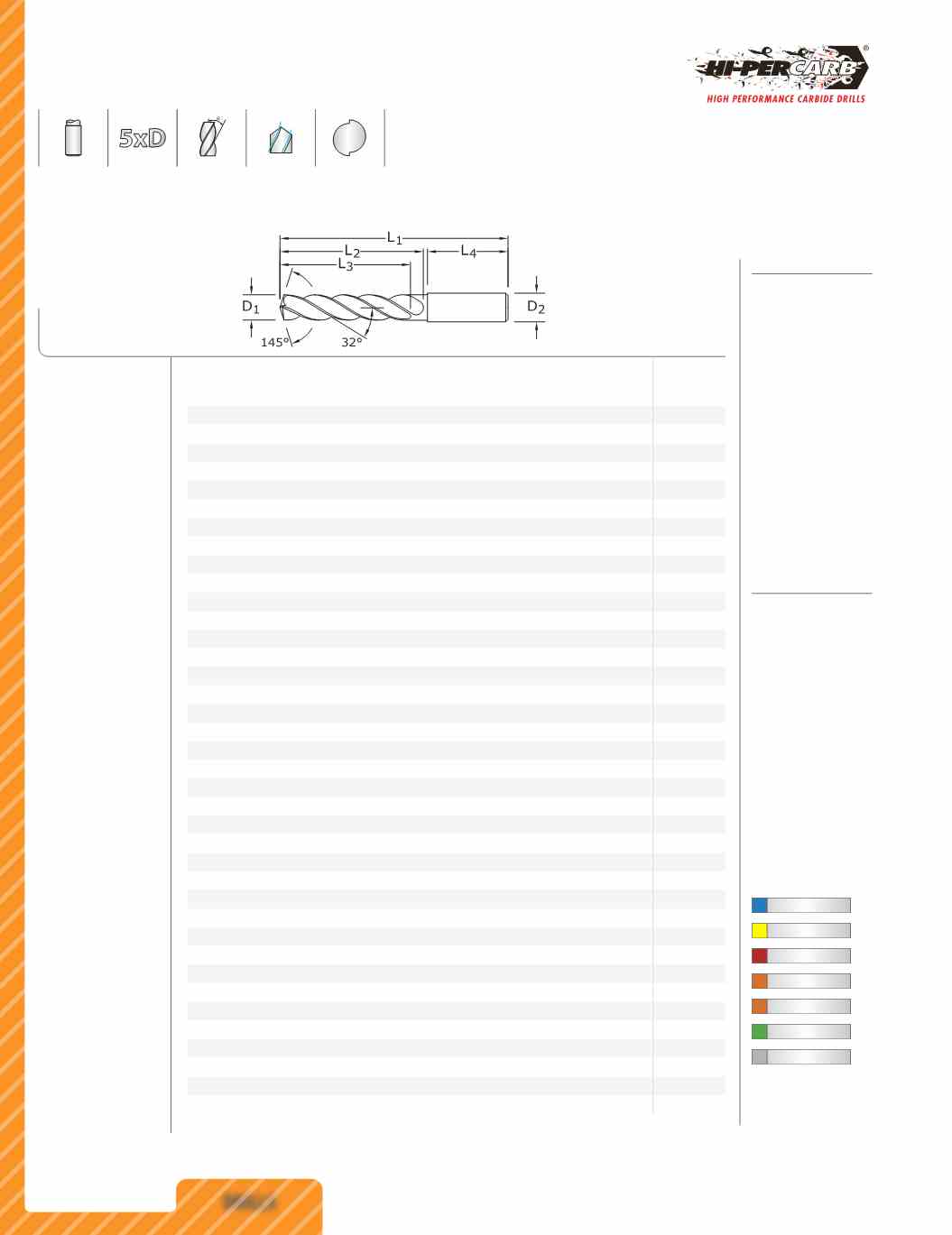

FRACTIONAL & METRIC
Hi-PerCarb
135 5xD
FRACTIONAL & METRIC SERIES
2
• Double margin design
improves accuracy and
surface finish along with
increased strength for
aggressive drilling
• Specialized self-
centering notched point
eliminates the need for
spot drilling decreasing
thrust and deflection
• Engineered edge
protection improves edge
strength and reduces
edge fatigue allowing for
increased feed rates
• Recommended for
materials ≤ 56 HRc
(≤ 577 Bhn)
STEELS
STAINLESSSTEELS
CAST IRON
HIGHTEMPALLOYS
TITANIUM
NON-FERROUS
HARDENEDSTEELS
TOLERANCES
(mm)
≤3
DIAMETER
D
1
=
+0,002/+0,012
D
2
=
h
6
>3–6
DIAMETER
D
1
=
+0,004/+0,016
D
2
=
h
6
>6–10
DIAMETER
D
1
=
+0,006/+0,021
D
2
=
h
6
>10–18
DIAMETER
D
1
=
+0,007/+0,025
D
2
=
h
6
>18–30
DIAMETER
D
1
=
+0,008/+0,029
D
2
=
h
6
TOLERANCES
(inch)
≤.1181
DIAMETER
D
1
=
+.00008/+.00047
D
2
=
h
6
>.1181–.2362
DIAMETER
D
1
=
+.00016/+.00063
D
2
=
h
6
>.2362–.3937
DIAMETER
D
1
=
+.00024/+.00083
D
2
=
h
6
>.3937–.7087
DIAMETER
D
1
=
+.00028/+.00098
D
2
=
h
6
>.7087–1.1811
DIAMETER
D
1
=
+.00031/+.00114
D
2
=
h
6
