FRACTIONAL SERIES
inch
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
UNCOATED Ti-NAMITE-C
(TiCN)
1/16
3/16
1-1/2
1/8
35273
35300
3/32
3/8
1-1/2
1/8
35275
35301
1/8
7/16
1-1/2
1/8
35277
35302
5/32
9/16
2
3/16
35278
35303
3/16
9/16
2
3/16
35279
35304
7/32
5/8
2-1/2
1/4
35280
35305
1/4
3/4
2-1/2
1/4
35281
35306
9/32
3/4
2-1/2
5/16
35282
35307
5/16
13/16
2-1/2
5/16
35283
35308
3/8
7/8
2-1/2
3/8
35285
35309
7/16
1
2-3/4
7/16
35287
35310
1/2
1
3
1/2
35289
35311
9/16
1-1/8
3-1/2
9/16
35291
35312
5/8
1-1/4
3-1/2
5/8
35293
35313
3/4
1-1/2
4
3/4
35295
35314
1
1-1/2
4
1
35297
35315
NON-FERROUS
PLASTICS/COMPOSITES
FRACTIONAL

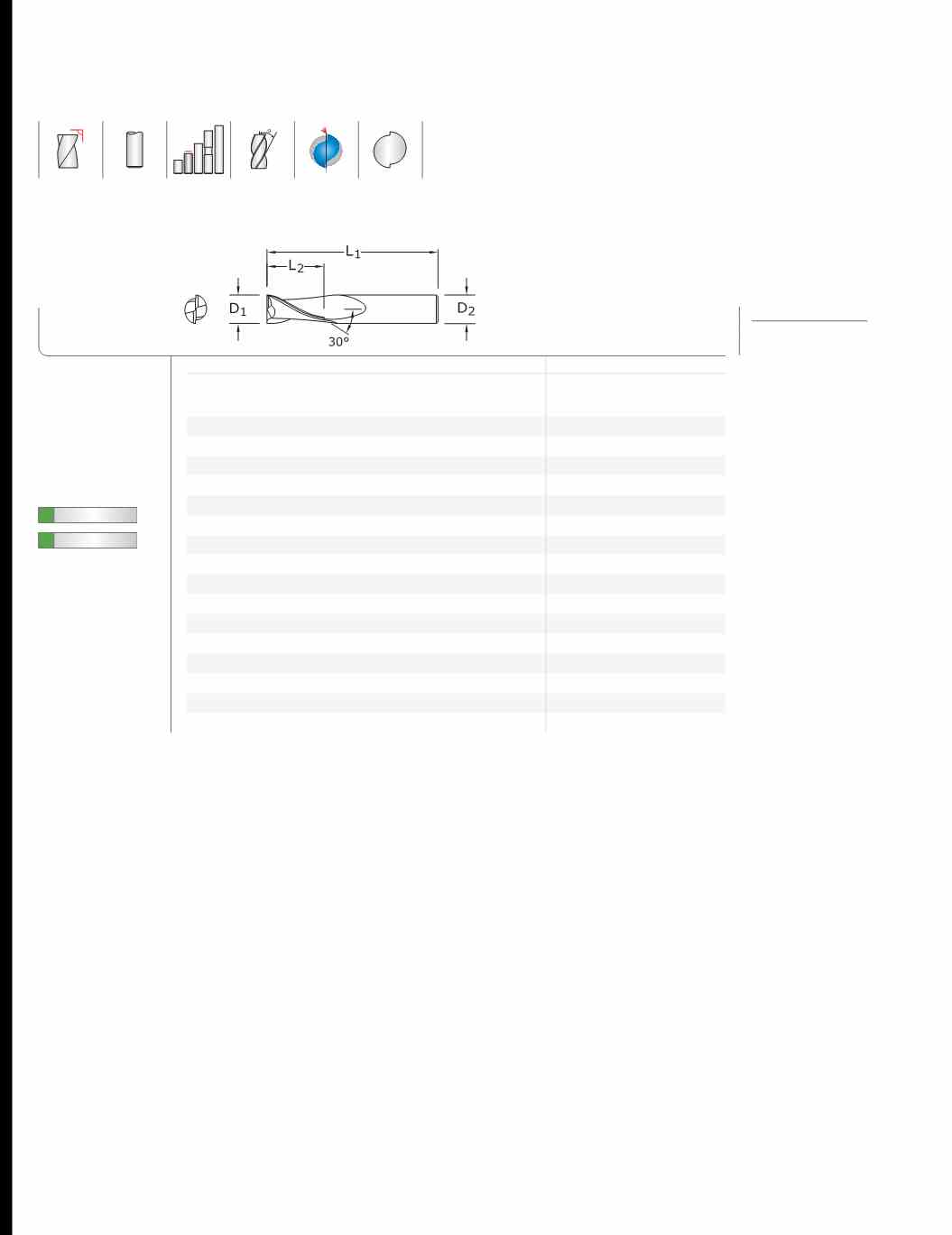

2 Flute High Shear End Mills
TOLERANCES
(inch)
D
1
=
+0.0000/–0.0020
D
2
=
h
6
POS
2
For patent
information visit
www.ksptpatents.com
