CCR
CARBON-FIBER
COMPOSITE
ROUTERS
PLASTICS/COMPOSITES
20M-CCR
METRIC SERIES
mm
EDP NO.

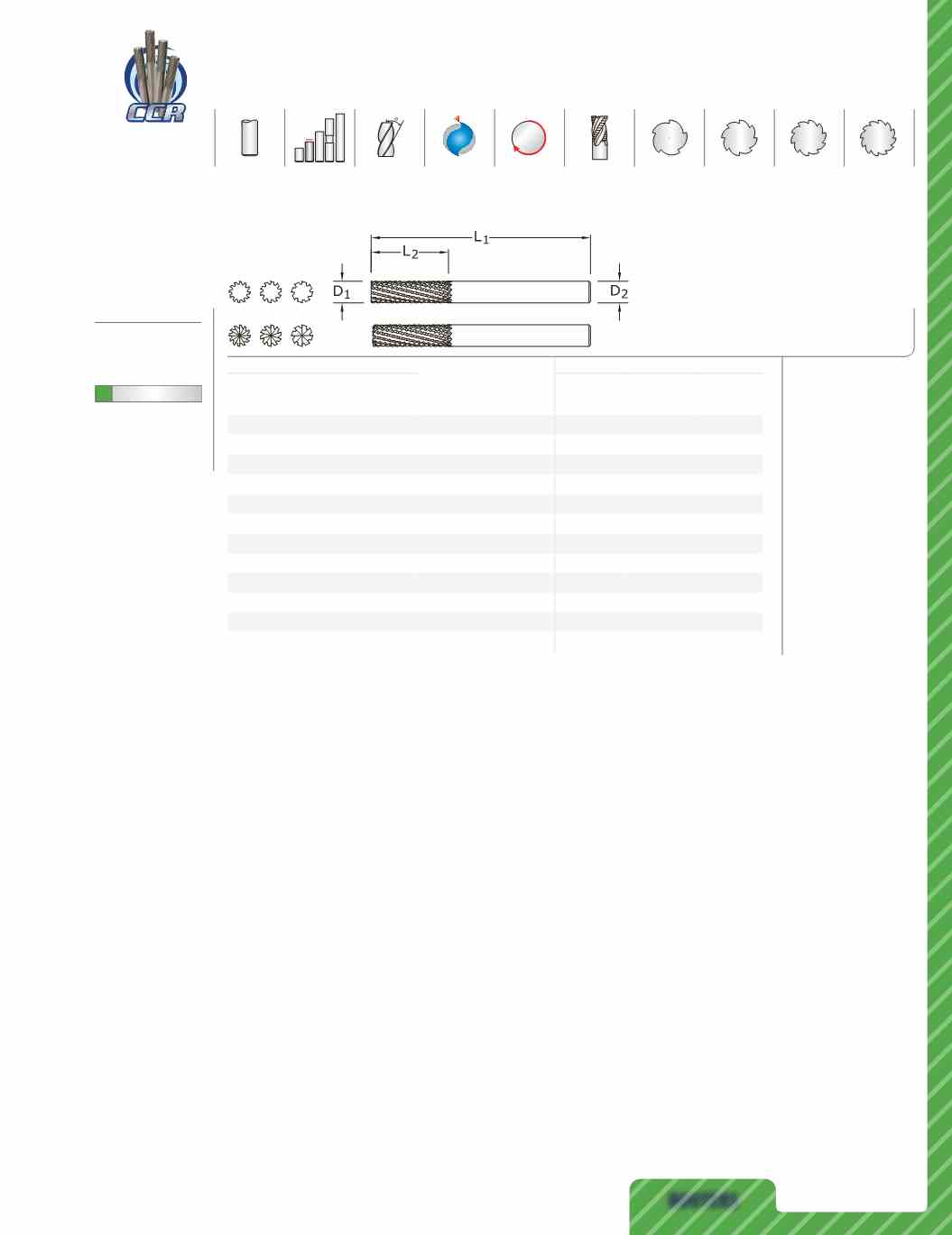

CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
NO. OF
FLUTES
END
STYLE
UNCOATED
Ti-NAMITE-B
(TiB
2
)
Di-NAMITE
®
(Diamond)
2,0
6,0 38,0 3,0
5
End Cutting
82930
83100
83070
3,0 10,0 38,0 3,0
5
End Cutting
82931
83101
83071
4,0 12,0 50,0 4,0
5
End Cutting
82932
83102
83072
5,0 15,0 50,0 6,0
5
End Cutting
82933
83103
83073
6,0 25,0 63,0 6,0
8
No End Cutting
82966
83104
83027
6,0 25,0 63,0 6,0
8
End Cutting
82967
83105
83026
8,0 25,0 63,0 8,0
10
No End Cutting
82968
83106
83029
8,0 25,0 63,0 8,0
10
End Cutting
82969
83107
83028
10,0 28,0 63,0 10,0 12
No End Cutting
82970
83108
83042
10,0 28,0 63,0 10,0 12
End Cutting
82971
83109
83041
12,0 38,0 89,0 12,0 12
No End Cutting
82972
83110
83044
12,0 38,0 89,0 12,0 12
End Cutting
82973
83111
83043
METRIC
Carbon Composite
• Multi-flute design and
positive geometry to
shear with minimal
pressure and
delamination
• Unique clearance
grind minimizes
contact between tool
diameter and workpiece
eliminating friction
• Left hand flutes
engineered to control
the fibers within CFRP,
preventing excessive
fiber breakout
• Excels at trimming and
profiling difficult and
abrasive fiber filled
plastics
TOLERANCES
(mm)
D
1
=
+0,00/–0,13
D
2
=
h
6
POS
RHC
5
8
10
12
