20M-CCR-LHC
METRIC SERIES
mm
EDP NO.
CUTTING
DIAMETER

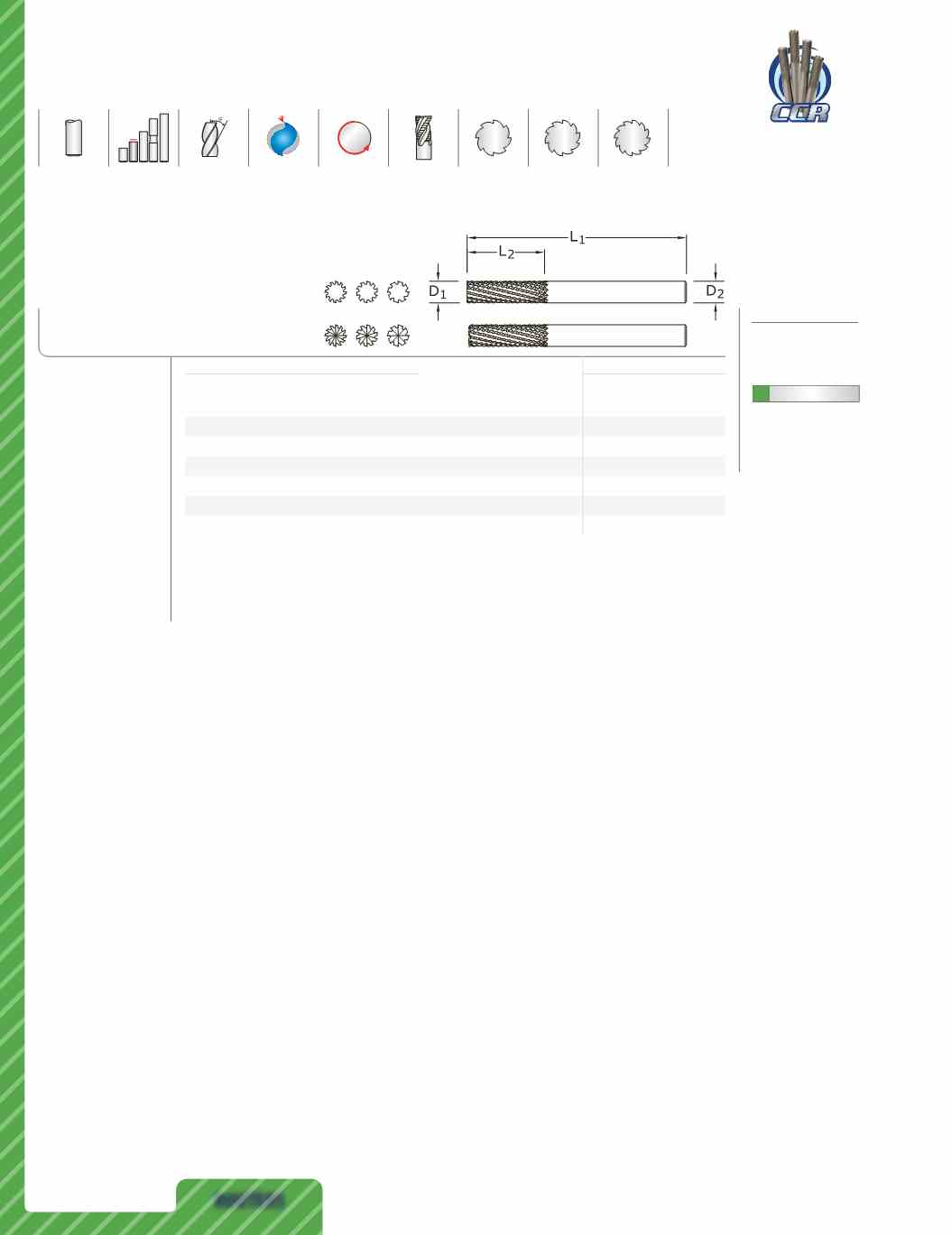

D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
NO. OF
FLUTES
END
STYLE
UNCOATED
Di-NAMITE
®
(Diamond)
6,0
25,0
63,0
6,0
8
No End Cutting 83220
83230
6,0
25,0
63,0
6,0
8
End Cutting
83221
83231
8,0
25,0
63,0
8,0
10 No End Cutting 83222
83232
8,0
25,0
63,0
8,0
10
End Cutting
83223
83233
10,0
28,0
63,0
10,0
12 No End Cutting 83224
83234
10,0
28,0
63,0
10,0
12
End Cutting
83225
83235
METRIC
Carbon Composite
• Multi-flute design and
positive geometry to
shear with minimal
pressure and
delamination
• Unique clearance
grind minimizes
contact between tool
diameter and workpiece
eliminating friction
• Left hand flutes
engineered to control
the fibers within CFRP,
preventing excessive
fiber breakout
• Excels at trimming and
profiling difficult and
abrasive fiber filled
plastics
POS
LHC
8
10
12
CCR
CARBON-FIBER
COMPOSITE
ROUTERS
TOLERANCES
(mm)
D
1
=
+0,00/–0,13
D
2
=
h
6
