CCR
CARBON-FIBER
COMPOSITE
ROUTERS
PLASTICS/COMPOSITES
FRACTIONAL
Carbon Composite
• Multi-flute design and
positive geometry to
shear with minimal
pressure and
delamination
• Unique clearance
grind minimizes
contact between tool
diameter and workpiece
eliminating friction
• Left hand flutes
engineered to control
the fibers within CFRP,
preventing excessive
fiber breakout
• Excels at trimming and
profiling difficult and
abrasive fiber filled
plastics

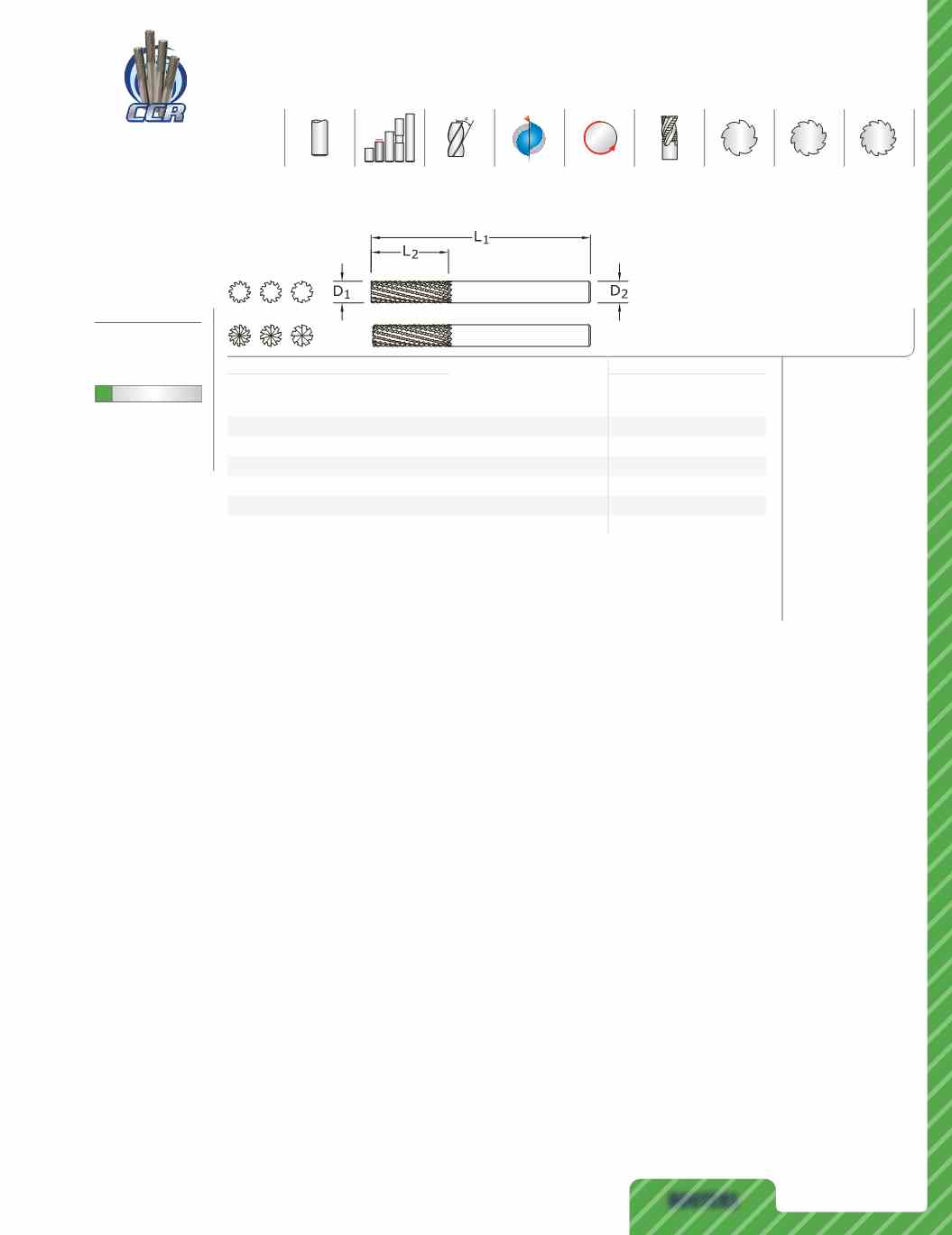

TOLERANCES
(inch)
D
1
=
+.000/–.005
D
2
=
h
6
POS
LHC
8
10
12
20-CCR-LHC
FRACTIONAL SERIES
inch
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
NO. OF
FLUTES
END
STYLE
UNCOATED
Di-NAMITE
®
(Diamond)
1/4
1
2-1/2
1/4
8 No End Cutting
73070
73078
1/4
1
2-1/2
1/4
8
End Cutting
73071
73079
5/16
1
2-1/2 5/16
10 No End Cutting
73072
73080
5/16
1
2-1/2 5/16
10
End Cutting
73073
73081
3/8
1-1/8 2-1/2
3/8
12 No End Cutting
73074
73082
3/8
1-1/8 2-1/2
3/8
12
End Cutting
73075
73083
