END MILLS
END MILLS

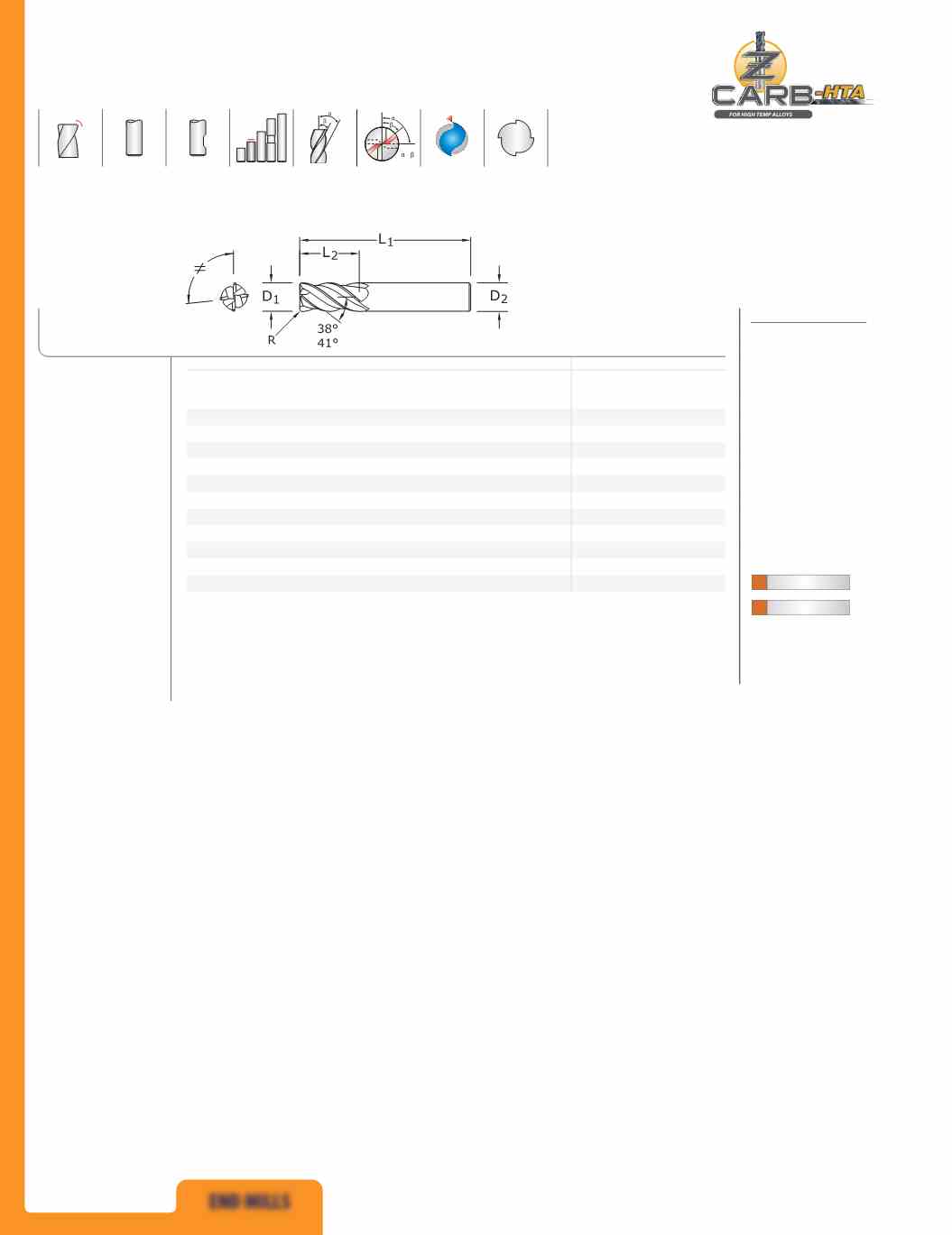

ZH1CR
FRACTIONAL SERIES
inch
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
CORNER
RADIUS
R
Ti-NAMITE-A
(AlTiN)
Ti-NAMITE-A
(AlTiN)
W/FLAT
1/4
1/2
2-1/2
1/4
.020
36570
–
1/4
3/4
2-1/2
1/4
.020
36616
–
5/16
13/16
2-1/2
5/16
.020
36571
–
3/8
7/8
2-1/2
3/8
.020
36572
36555
7/16
1
2-3/4
7/16
.020
36573
36556
1/2
1
3
1/2
.030
36574
36557
1/2
1-1/4
3-1/4
1/2
.030
36618
36617
9/16
1-1/8
3-1/2
9/16
.030
36575
36558
5/8
1-1/4
3-1/2
5/8
.040
36576
36559
3/4
1-1/2
4
3/4
.040
36577
36560
1
1-1/2
4
1
.040
36578
36561
FRACTIONAL
Z-Carb-HTA
≠
POS
4
• The original Z-Carb design
with an enhanced core
and higher helix suited
for the demands of high
temperature alloys
• Unequal helix design aids
in damaging harmonics
by changing the angle
at which each cutting
edge enters and exits the
material
• Unequal flute spacing
helps to disrupt the
rhythmic pattern created
by the cutting edge helping
to suppress damaging
harmonics
• Optimal material removal
rates through increased
feed and depths of cut
for difficult to machine
materials
• Enhanced corner geometry
with tight tolerance corner
radii
• Recommended for
materials ≤ 45 HRc
(≤ 420 Bhn)
TOLERANCES
(inch)
1/4
DIAMETER
D
1
=
+0.0000/–0.0012
D
2
=
h
6
R =
+0.0000/–0.0020
>1/4–3/8
DIAMETER
D
1
=
+0.0000/–0.0016
D
2
=
h
6
R =
+0.0000/–0.0020
>3/8–1
DIAMETER
D
1
=
+0.0000/–0.0020
D
2
=
h
6
R =
+0.0000/–0.0020
For patent
information visit
www.ksptpatents.com
