STEELS
STAINLESSSTEELS
CAST IRON
HIGHTEMPALLOYS
TITANIUM
HARDENEDSTEELS
NON-FERROUS
PLASTICS/COMPOSITES
195
www.kyocera-sgstool.com
1CR
FRACTIONAL SERIES
inch
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
CORNER
RADIUS
R
UNCOATED
Ti-NAMITE
(TiN)
Ti-NAMITE-C
(TiCN)
Ti-NAMITE-A
(AlTiN)
1/8*
1/2
1-1/2
1/8
.015
38001
38002
38115
38157
1/8*
1/2
1-1/2
1/8
.020
38003
38004
38116
38158
3/16*
5/8
2
3/16
.015
38009
38010
38117
38159
3/16*
5/8
2
3/16
.020
38011
38012
38118
38160
3/16*
5/8
2
3/16
.030
38013
38014
38119
38161
1/4*
3/4
2-1/2
1/4
.015
38019
38020
38120
38162
1/4*
3/4
2-1/2
1/4
.020
38021
38022
38121
38163
1/4*
3/4
2-1/2
1/4
.030
38023
38024
38122
38164
1/4*
3/4
2-1/2
1/4
.045
38025
38026
38123
38165
5/16*
13/16
2-1/2
5/16
.015
38031
38032
38124
38166
5/16*
13/16
2-1/2
5/16
.020
38033
38034
38125
38167
5/16*
13/16
2-1/2
5/16
.030
38035
38036
38126
38168
5/16*
13/16
2-1/2
5/16
.045
38037
38038
38127
38169
3/8
1
2-1/2
3/8
.015
38045
38046
38128
38170
3/8
1
2-1/2
3/8
.020
38047
38048
38129
38171
3/8
1
2-1/2
3/8
.030
38049
38050
38130
38172
3/8
1
2-1/2
3/8
.045
38051
38052
38131
38173
1/2
1
3
1/2
.015
38059
38060
38132
38174
1/2
1
3
1/2
.020
38061
38062
38133
38175
1/2
1
3
1/2
.030
38063
38064
38134
38176
1/2
1
3
1/2
.045
38065
38066
38135
38177
1/2
1
3
1/2
.060
38067
38068
38136
38178
5/8
1-1/4
3-1/2
5/8
.015
38073
38074
38137
38179
5/8
1-1/4
3-1/2
5/8
.020
38075
38076
38138
38180
5/8
1-1/4
3-1/2
5/8
.030
38077
38078
38139
38181
5/8
1-1/4
3-1/2
5/8
.045
38079
38080
38140
38182
5/8
1-1/4
3-1/2
5/8
.060
38081
38082
38141
38183
5/8
1-1/4
3-1/2
5/8
.090
38083
38084
38142
38184
3/4
1-1/2
4
3/4
.015
38087
38088
38143
38185
3/4
1-1/2
4
3/4
.020
38089
38090
38144
38186
*Without Flat
continued on next page
FRACTIONAL

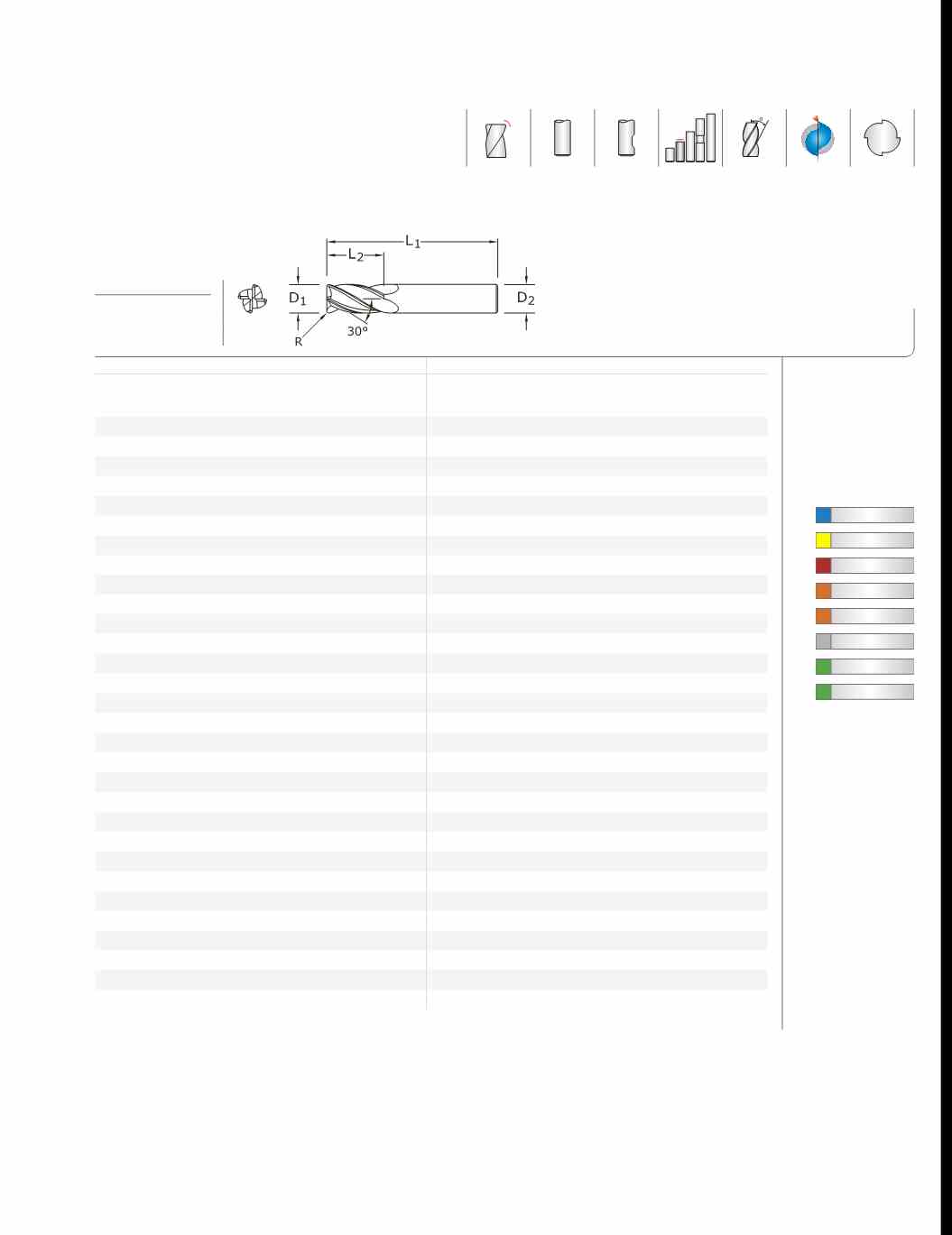

4 Flute Corner Radius
POS
4
TOLERANCES
(inch)
D
1
=
–0.0010/–0.0020
D
2
=
h
6
R =
+0.0000/–0.0020
For patent
information visit
www.ksptpatents.com
