STEELS
STAINLESSSTEELS
CAST IRON
HIGHTEMPALLOYS
TITANIUM
HARDENEDSTEELS
NON-FERROUS
PLASTICS/COMPOSITES
192
www.kyocera-sgstool.com
inch
EDP NO.
CUTTING
DIAMETER
D
1
LENGTH
OF CUT
L
2
OVERALL
LENGTH
L
1
SHANK
DIAMETER
D
2
UNCOATED
Ti-NAMITE
(TiN)
Ti-NAMITE-C
(TiCN)
Ti-NAMITE-A
(AlTiN)
1/16
1/8
1-1/2
1/8
31601
31650
31238
31251
3/32
3/16
1-1/2
1/8
31603
31651
31239
31252
1/8
1/4
1-1/2
1/8
31605
31652
31240
31253
5/32
5/16
2
3/16
31607
31653
31241
31254
3/16
3/8
2
3/16
31609
31654
31242
31255
7/32
7/16
2
1/4
31611
31655
31243
31256
1/4
1/2
2
1/4
31613
31656
31244
31257
5/16
1/2
2
5/16
31615
31657
31245
31258
3/8
5/8
2
3/8
31617
31658
31246
31259
7/16
5/8
2-1/2
7/16
31619
31659
31247
31260
1/2
5/8
2-1/2
1/2
31621
31660
31248
31261
5/8
3/4
3
5/8
31623
31661
31249
31262
3/4
1
3
3/4
31625
31662
31250
31263

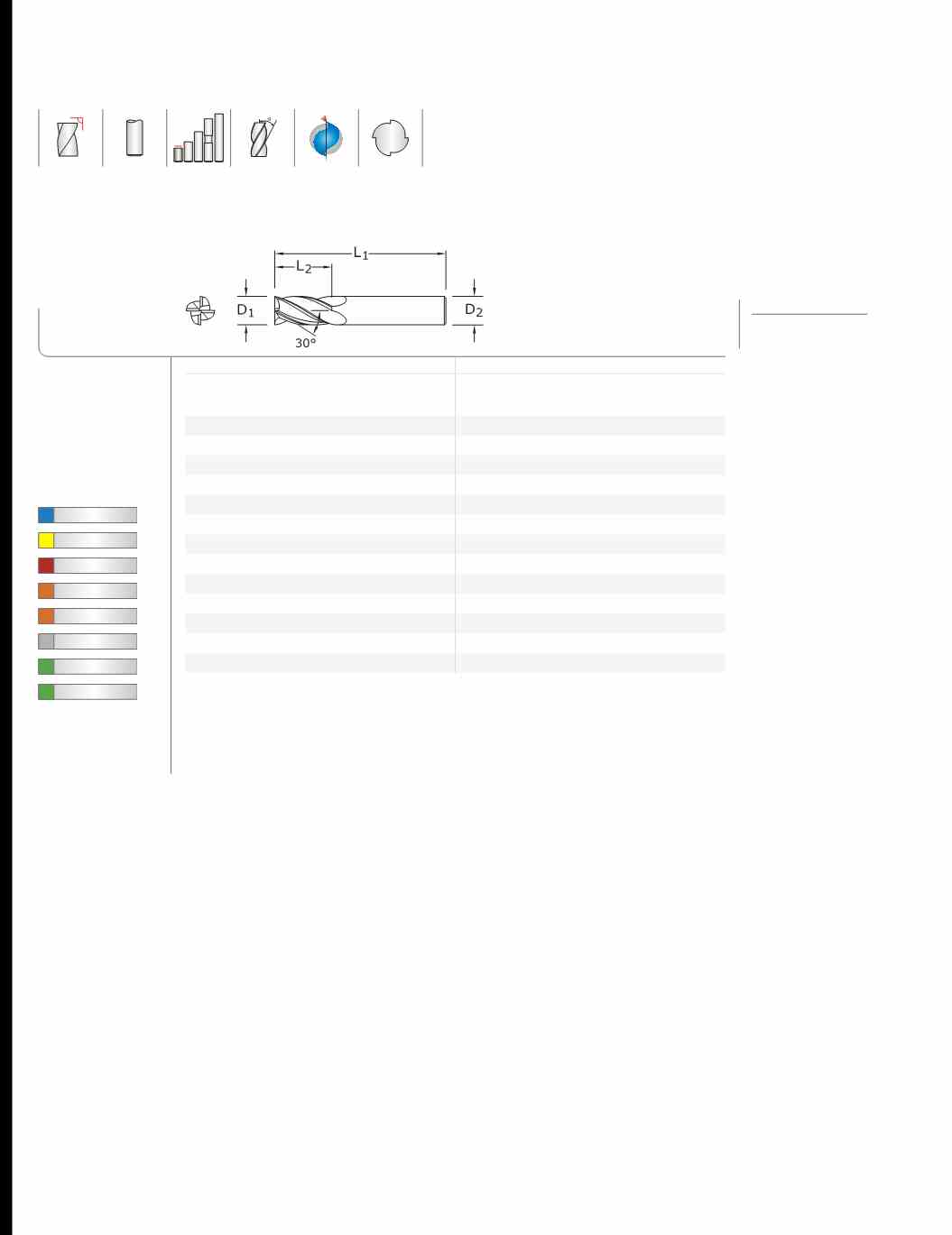

FRACTIONAL
4 Flute Square End Stub
TOLERANCES
(inch)
D
1
=
+0.0000/–0.0020
D
2
=
h
6
POS
4
16
FRACTIONAL SERIES
