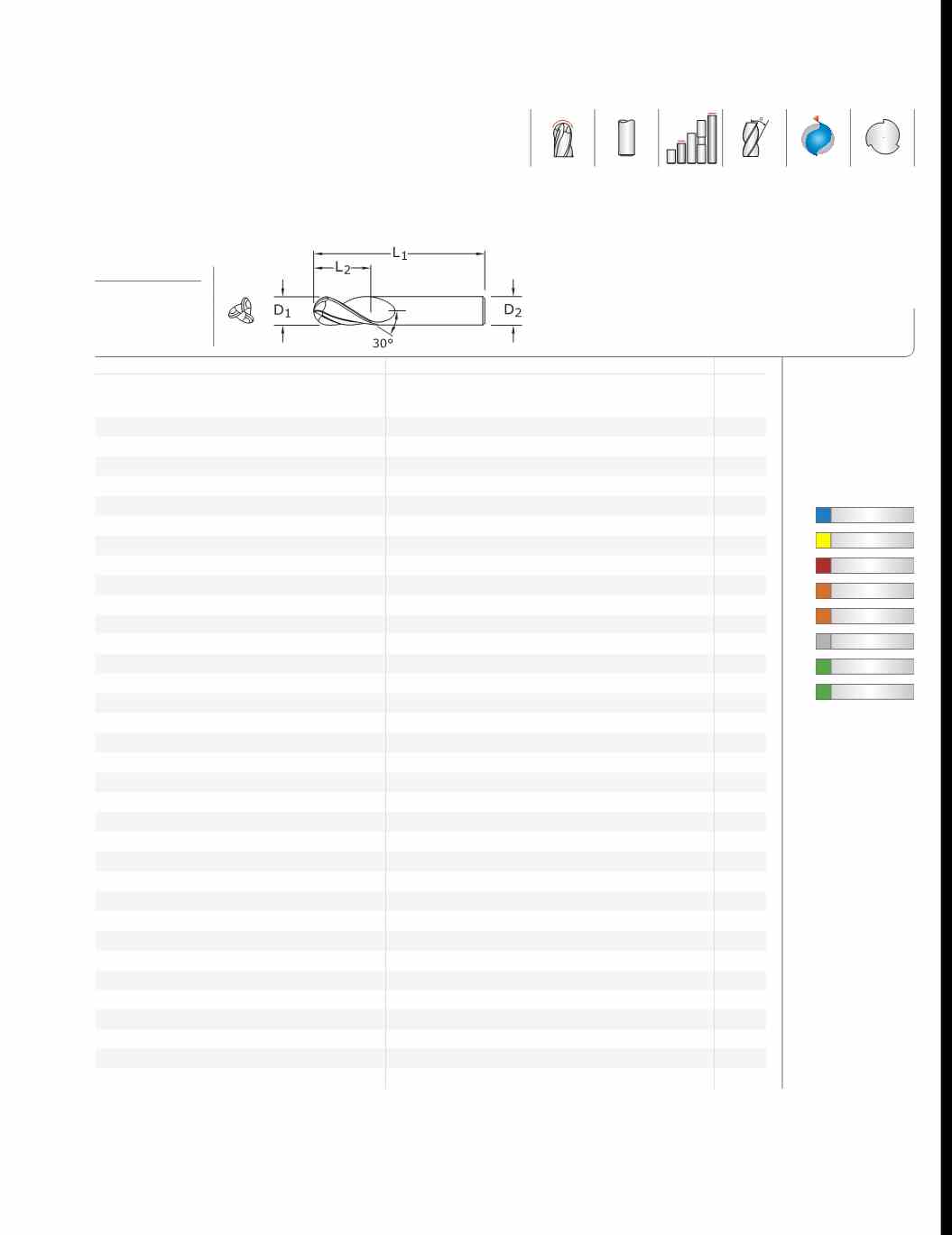

5MB• 5XLMB
METRIC SERIES
mm EDP NO. SERIES
CUTTING
DIAMETER
D1
LENGTH
OF CUT
L2
OVERALL
LENGTH
L1
SHANK
DIAMETER
D2
UNCOATED Ti-NAMITE
(TiN)
Ti-NAMITE-C
(TiCN)
Ti-NAMITE-A
(AlTiN)
1,0 4,0 38,0 3,0 40506 48820 48842 48863 5MB
1,5 4,5 38,0 3,0 40510 48821 48843 48864 5MB
2,0 6,3 38,0 3,0 40514 48822 48844 48865 5MB
2,5 9,5 38,0 3,0 40518 48823 48845 48866 5MB
3,0 12,0 38,0 3,0 40522 48824 48846 48867 5MB
3,0 25,0 75,0 3,0 43502 49583 49596 49609 5XLMB
3,5 12,0 50,0 4,0 40526 48825 48847 48868 5MB
4,0 14,0 50,0 4,0 40530 48826 48848 48869 5MB
4,0 25,0 75,0 4,0 43504 49584 49597 49610 5XLMB
4,5 16,0 50,0 6,0 40534 48827 48849 48870 5MB
5,0 16,0 50,0 6,0 40538 48828 48850 48871 5MB
5,0 25,0 75,0 5,0 43508 49586 49599 49612 5XLMB
6,0 19,0 50,0 6,0 40542 48829 48851 48872 5MB
6,0 25,0 75,0 6,0 43506 49585 49598 49611 5XLMB
7,0 19,0 63,0 8,0 40546 48830 48852 48873 5MB
8,0 20,0 63,0 8,0 40550 48831 48853 48874 5MB
8,0 25,0 75,0 8,0 43516 49587 49600 49613 5XLMB
9,0 22,0 75,0 10,0 40554 48832 48854 48875 5MB
10,0 22,0 75,0 10,0 40558 48833 48855 48876 5MB
10,0 38,0 100,0 10,0 43526 49588 49601 49614 5XLMB
11,0 25,0 75,0 12,0 40562 48834 48856 48877 5MB
12,0 25,0 75,0 12,0 40566 48835 48857 48878 5MB
12,0 50,0 100,0 12,0 43536 49589 49602 49615 5XLMB
12,0 75,0 150,0 12,0 43546 49590 49603 49616 5XLMB
14,0 32,0 89,0 14,0 40570 48836 48858 48879 5MB
14,0 75,0 150,0 14,0 43556 49591 49604 49617 5XLMB
16,0 32,0 89,0 16,0 40574 48837 48859 48880 5MB
16,0 75,0 150,0 16,0 43566 49592 49605 49618 5XLMB
18,0 38,0 100,0 18,0 40578 48838 48860 48881 5MB
18,0 75,0 150,0 18,0 43576 49593 49606 49619 5XLMB
20,0 38,0 100,0 20,0 40582 48839 48861 48882 5MB
20,0 75,0 150,0 20,0 43586 49594 49607 49620 5XLMB
25,0 38,0 100,0 25,0 40586 48840 48862 48883 5MB
25,0 75,0 150,0 25,0 43596 49595 49608 49621 5XLMB
METRIC
3 Flute Ball End
POS
3
For patent
information visit
www.ksptpatents.com
TOLERANCES (mm)
D1 = +0,000/–0,050
D2 = h6
BALL RADIUS
+0,000/–0,025
